Description

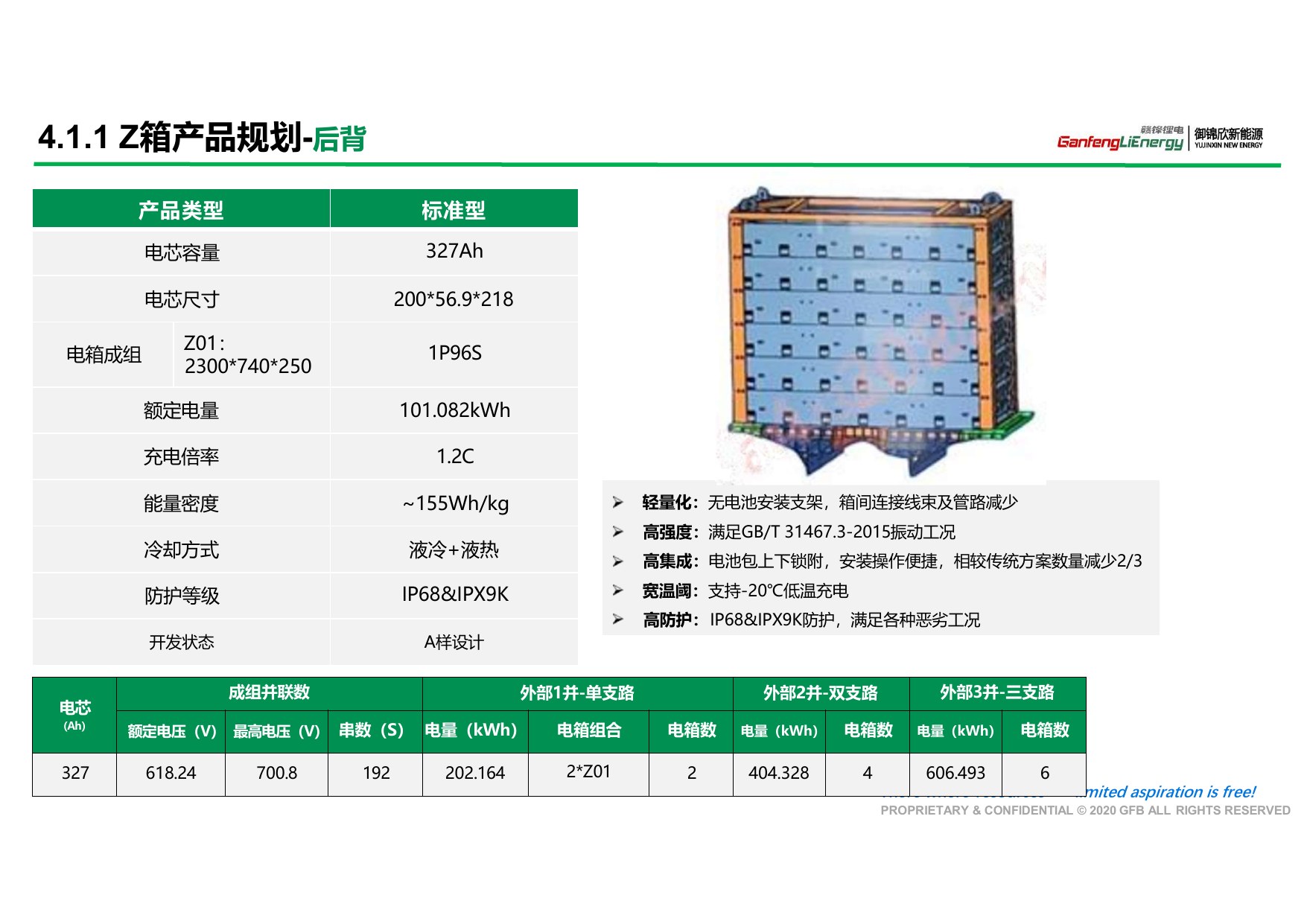

6. Heavy Truck Power Product Solution V0 · Heavy truck battery box / pack configuration
Standard model
Structured for solution products, making it easier to compare by vehicle type, equipment, configuration and application scenario.
Product overview
Key parameters
- Cellcapacity327Ah
- Cell Dimensions200*56. 9*218
- Energy Density~155Wh / kg
- Charge rate1. 2C
- Nominal/Rated energy101. 082 kWh
- Protection ratingIP68&IPX9K
Specifications
| Parameter | Value |
|---|---|
| Cellcapacity | 327Ah |
| Nominal/Rated energy | 101. 082 kWh |
| Cell Dimensions | 200*56. 9*218 |
| Energy Density | ~155Wh / kg |
| Charge rate | 1. 2C |
| Protection rating | IP68&IPX9K |
| Cooling method | Liquid cooling+Liquid heating |
| Development status | A样design |
| Battery box grouping | 1P96S |
