3. Residential Energy Storage Introduction V0 · Residential energy storage

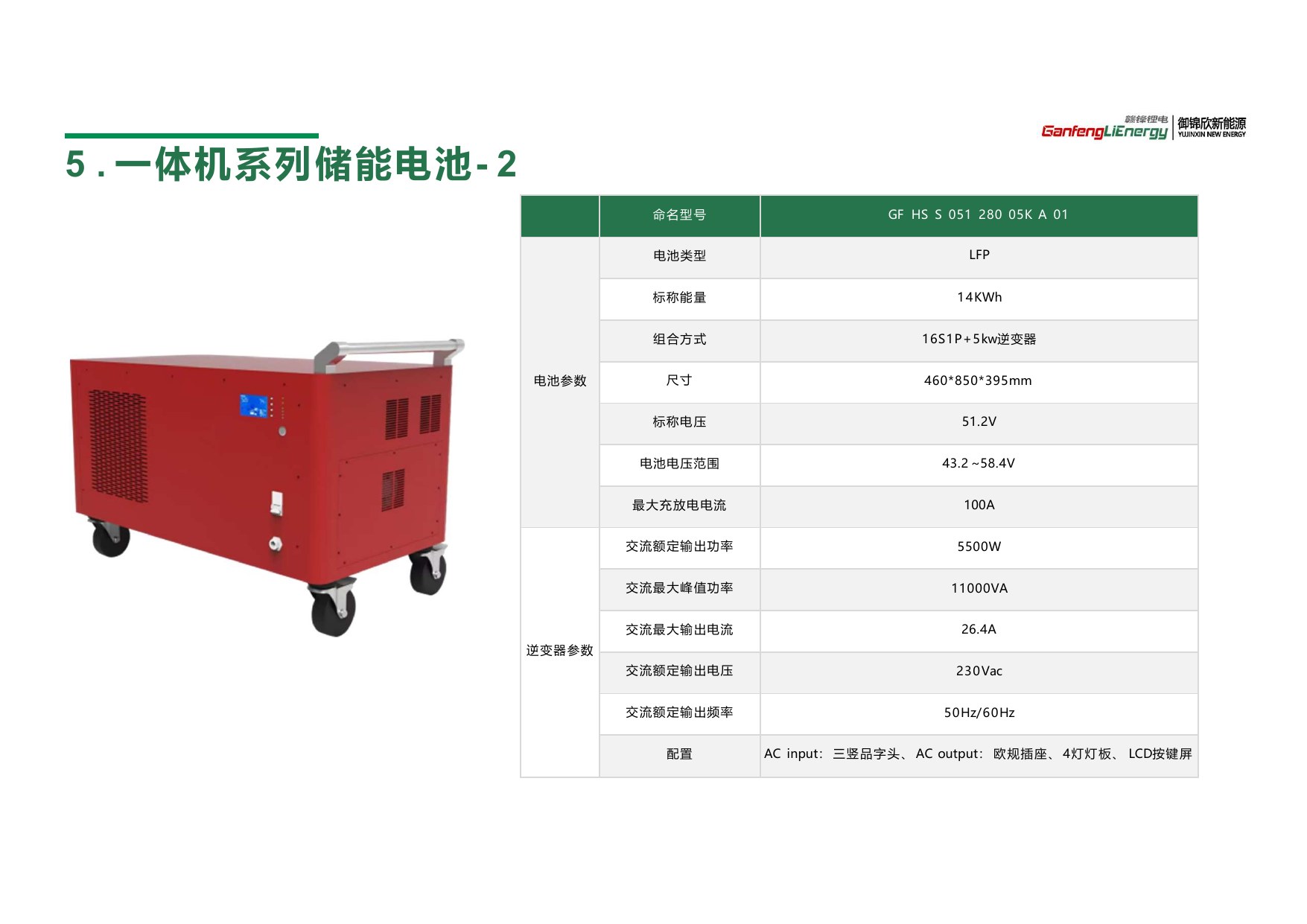

GF HS S 051 280 05K A 01
Structured for energy storage project selection, highlighting system power, capacity, configuration, application scenario and source manual.
Product overview
Key parameters
- Nominal/Rated Voltage51. 2V
- Operating voltage range43. 2~58. 4V
- Rated AC output voltage230Vac
- dimensions460*850*395mm
- Rated output power5500W
- Maximum AC peak power11000VA
Specifications
| Parameter | Value |
|---|---|
| Battery type | LFP |
| Nominal/Rated Voltage | 51. 2V |
| Nominal/Rated energy | 14KWh |
| Operating voltage range | 43. 2~58. 4V |
| Combination method/Series/parallel | 16S1P+5kwInverter |
| dimensions | 460*850*395mm |
| Rated output power | 5500W |
| Maximum AC peak power | 11000VA |
| Maximum AC output current | 26. 4A |
| Rated AC output voltage | 230Vac |
| Rated AC output frequency | 50Hz / 60Hz |
| Discharge current | 100A |
| Configuration | AC input: Three-pin vertical socket head, AC output: EU socket, 4灯Light board, LCDButton screen |
